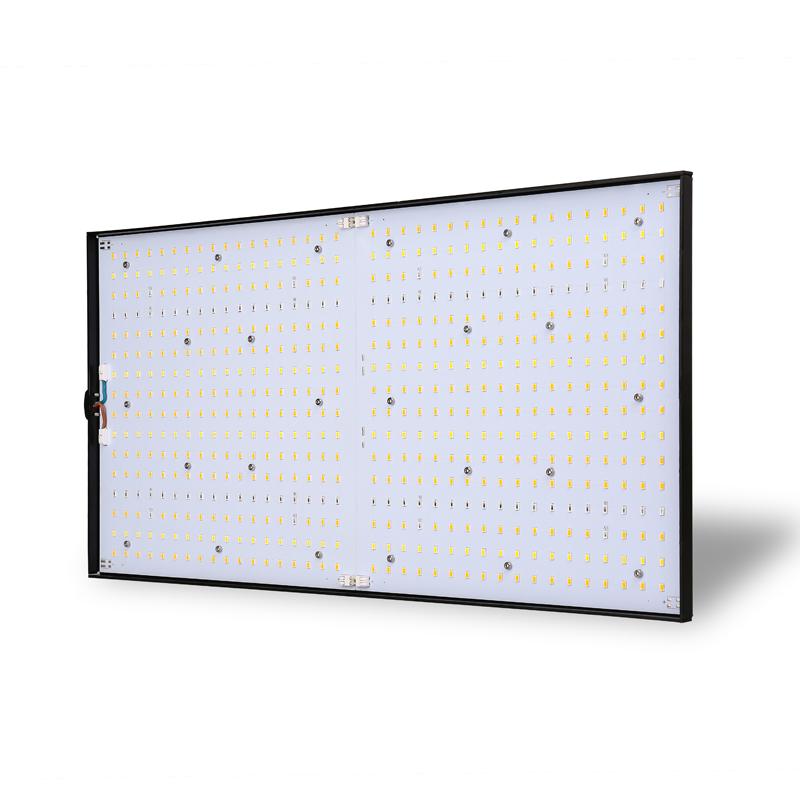

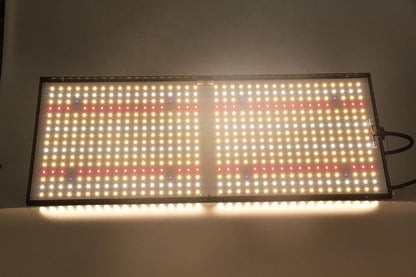

LED Phytolite Resin QBoard 240W

PhytoLED Q-Board is a professional line of LED grow light products made with the best electronic components on the market.

SMD technology, Samsung 300K and 660nm red chips, UV and IR radiation combined, offer a full spectrum from vegetative to flowering.

Mean Well dimmable power functions are offered in the high-level products of the range, while non-dimmable and economical boards are offered in the PhytoLED M-Board versions for beginners and small applications.

Passive cooling, silent operation, aluminum frame, ultra-thin design are some of the technical features of this line. Explore the models and find the product best suited to your grow room.

QBoard 120 data sheet

LED Ratio:

• SAM SUNG LM561C 3000K 352PCS, 5000K 144PCS Epistar R660nm 64PCS, IR 730nm 8PCS , UV 395nm 8PCS
•

• Full spectrum (full cycle)
•

• MEANWELL External Dimmable Driver

Power Information:

• Power consumption 240W
• Input voltage AC100V ~ 265V / 50-60Hz
• Amperage 1.09A / 220V
• PPF light output efficacy 2.03umol
• PPFD 451 at 60 cm, 278 at 90 cm
• Heat Management Heat Dissipation Passive, No Fan
• Aluminum PCB 2.0 mm thick
• Overheating No
• Lamp control protection Dimming YES
• Timing YES (optional)
• Controller available
• Device size: 608*300*20
• Appliance weight: 5.6 kg
• Inner package: 66.5*35*13cm

SPECIFICATIONS:

• Resin QBoard 240W:
• Estimated monthly cost (electricity used *) €23.76
• Dimmable Yes
• PPFD (μmol / m2-s) 60CM 451
• PPFD (μmol/m2-s) 90CM 278
• HPS 400W equivalent
• Max Grow Area (single lamp) 100x120
• Max Grow Area (In series) 120x140
• Dimensions 600 x 300 x 20 mm
• Real power absorbed 240
• Min / max distance from plants above 30
• Complete cycle cycle (vegetative and flowering)
• Spectrum Full spectrum 3000K + red + UV + IR
• Suggest. Number of plants (small) 8
• Suggest. Number of plants (average) 4
• Suggest. Number of plants (Large) 2
• 2 year warranty (if registered)
• Beam angle 120°

Product available to order 15/20 days
